Exercise Class 3

Author

Jonas Skjold Raaschou-Pedersen

Published

September 18, 2025

This week we start from this repository.

Exercise 1 - Embeddings

The following exercise is on word embeddings. We will use a small version of the GloVe embeddings. We choose those over the vanilla Word2Vec embeddings as the file size is smaller and they are easier to download. There are two tests for the following exercises here.

  1. Download a set of GloVe embeddings from here. Choose the smallest file glove.2024.wikigiga.50d.zip (290 MB download size) on the website. Unpack the zip file to the data directory in your project directory. You should now have following file in your data folder:

    wiki_giga_2024_50_MFT20_vectors_seed_123_alpha_0.75_eta_0.075_combined.txt

    Note: if the download link doesn’t work we have also uploaded the zip file glove.2024.wikigiga.50d.zip to Absalon under Files in the folder data that you can download instead.

  2. Make a file called src/ai4h/models/embeddings.py i.e. a new module for code related to embeddings.

  3. Insert the following function in your new module:

    from pathlib import Path

from numpy.typing import NDArray
import numpy as np


def load_txt_embeddings(path: Path | str, max_vocab: int | None = None):
    vocab: list[str] = []
    vectors = []

    with open(path, "r", encoding="utf-8") as f:
        for i, line in enumerate(f):
            parts = line.rstrip().split()
            word, vec = parts[:-50], parts[-50:]
            vocab.append("".join(word))
            vectors.append([float(x) for x in vec])
            if max_vocab and i + 1 >= max_vocab:
                break

    vectors = np.array(vectors, dtype=np.float32)
    return vocab, vectors

    Read only the first \(100,000\) vectors using the max_vocab parameter.

  4. Load the embeddings using load_txt_embeddings. That should give you the vocabulary (a list of strings) and a (100_000, 50) matrix of embedding vectors stacked along the rows (each embedding is a (1, 50) row vector). Normalize the embedding vectors i.e. divide each vector by its norm. To do this compute the norms using np.linalg.norm and set keepdims=True for correct broadcasting when doing the following division.

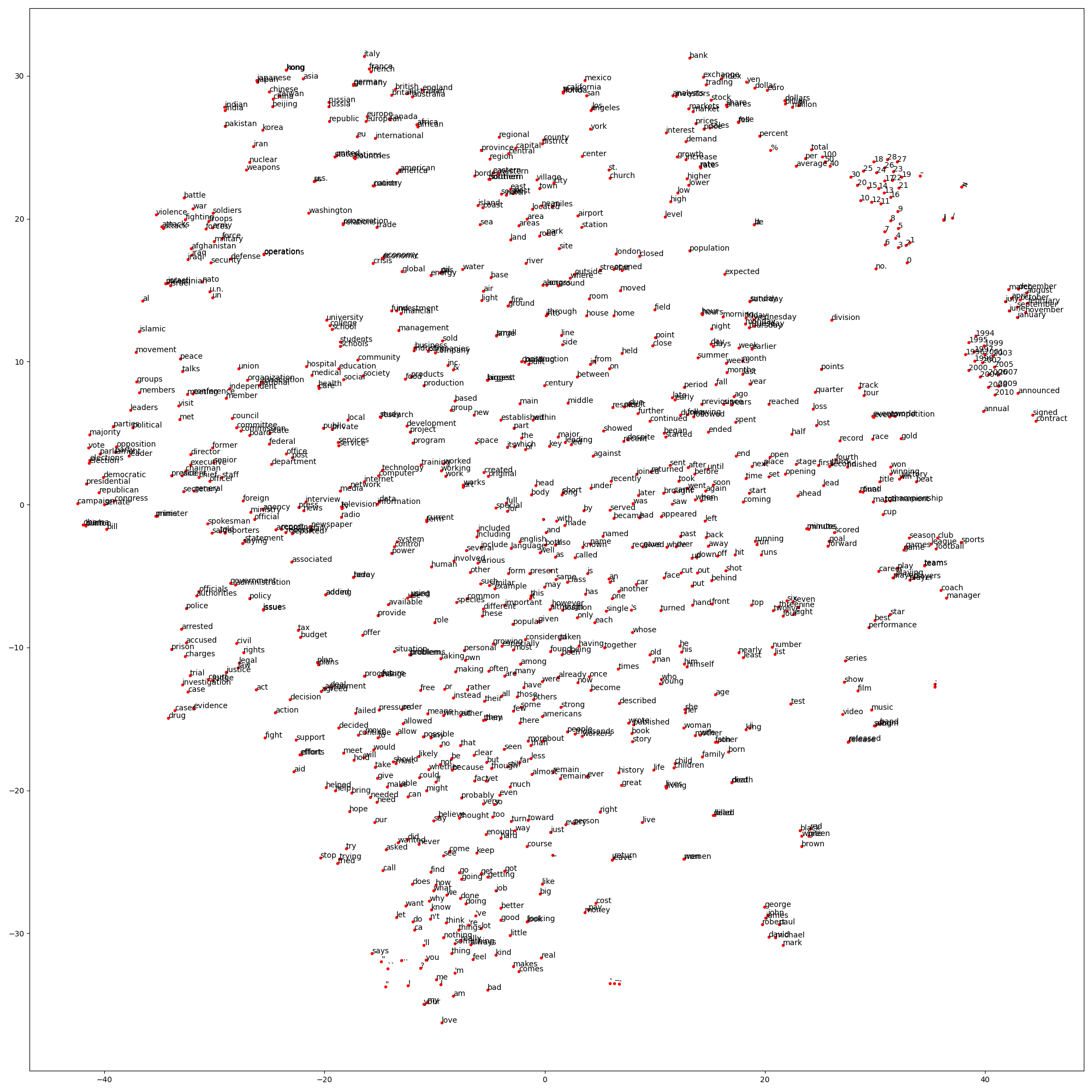

  5. Add matplotlib as a project dependency using uv add. Then project the first \(1000\) normalized embeddings to a two-dimensional space using TSNE(n_components=2, random_state=0) which can be imported as: from sklearn.manifold import TSNE. Plot the result.

    You should get something that looks like:

    Interpret the plot.

  6. Create a class WordEmbeddings with the following signature:

    class WordEmbeddings:
    def __init__(self, unit_vectors: NDArray[np.float32], vocab: list[str]):
        self.unit_vectors = unit_vectors
        self.vocab = vocab
        self.word2idx = _

    Replace _ with code that creates a mapping from words to index.

    E.g. word2idx["king"] should return 703 as king is the 704th entry in the vocabulary.

  7. Create a method vec in the WordEmbeddings class with the following signature:

    def vec(self, word: str) -> NDArray[np.float32]:
    raise NotImplementedError()

    It should use return a normalized vector corresponding to word. Replace raise NotImplementedError() with your code. Use the word2idx mapping to select the index corresponding to the word.

    Test it with:

    pytest tests/test_embeddings.py -k test_vec

Recall from the lecture that the cosine similarity between two vectors \(v, w \in \mathbb{R}^{d}\) can be computed as: \[\begin{aligned} \mathrm{cos}(v, w) = \frac{v^{T}w}{\Vert v \Vert \Vert w \Vert}. \end{aligned}\] If we normalize the vectors, i.e. set \(\tilde{v} := v/\Vert v \Vert\) and \(\tilde{w} := w/\Vert w \Vert\), then the cosine similarity equals the dot product between the normalized vectors: \[\begin{aligned} \mathrm{cos}(\tilde{v}, \tilde{w}) = \tilde{v}^{T}\tilde{w}. \end{aligned}\] Hence for some normalized query vector \(q\) and the normalized embeddings matrix \(\tilde{W} \in \mathbb{R}^{n \times d}\) we can quickly compute the cosine similarity between the query and all the embeddings as \[\begin{aligned} \tilde{W} q, \end{aligned}\] yielding a \(n\)-dimensional vector with the cosine similarity between \(q\) and each of the \(n\) embeddings. We will use this in the following exercise.

Note: In our example \(n = 100,000\) and \(d=50\) (we chose the 50-dimensional GloVe vectors).

  1. Create a method most_similar in the WordEmbeddings class with the following signature:

    def most_similar(
    self,
    query_vec: NDArray[np.float32],
    topk: int = 10,
    exclude: tuple[str, ...] | None = None,
) -> list[tuple[str, float]]:
    raise NotImplementedError()

    It should:

    • normalize the input query_vec vector
    • computes the cosine similarity scores between query_vec and each embedding in self.unit_vectors using the trick above
    • set all scores for the words in exlude (if any) equal to -np.inf (such that they are ignored in the search)
    • find the topk cosine similarity scores
    • return a list of tuples with (word, score) for the topk cosine similarity scores of query_vec vector with the embeddings.

    Test it with:

    pytest tests/test_embeddings.py -k test_most_similar

  2. Add tabulate as a project dependency using uv add. Next initialize the WordEmbeddings using the normalized embeddings. Then try to construct a table using tabulate with the 10 most similar words to frog and print it out. You should get something like:

    word         score
--------  --------
snake     0.887447
toad      0.851514
lizard    0.832843
monkey    0.809783
dwarf     0.803363
rabbit    0.802861
snakes    0.778667
squirrel  0.776353
serpent   0.773521
tailed    0.771302

  3. Recall that word embeddings can be used to solve so-called “analogy problems”. For instance, computing the difference in normalized embeddings king - man and adding it to woman should yield a vector close to queen i.e.: king - man + woman ≈ queen. We will try to verify this in this exercise using our most_similar method.

    Loop over the analogies below and:

    • construct a query vector by doing the correct arithmetic with the embeddings of the first three words
    • pass the query vector into most_similar and print out a table of the top 10 most similar vectors to the query
analogies = [
    # the fourth word should be close to the linear combination of the first
    # three measured by the cosine similarity distance
    ("king", "man", "woman", "queen"),
    ("paris", "france", "italy", "rome"),
    ("berlin", "germany", "spain", "madrid"),
    ("walking", "walk", "swim", "swimming"),
]

E.g. for the first you should get:

word              score
-------------  --------
queen          0.865907
daughter       0.796838
throne         0.78326
eldest         0.775711
elizabeth      0.775592
princess       0.764289
marriage       0.761845
mother         0.757996
granddaughter  0.755066
father         0.754288

where queen is the most similar with a score of 0.865907.

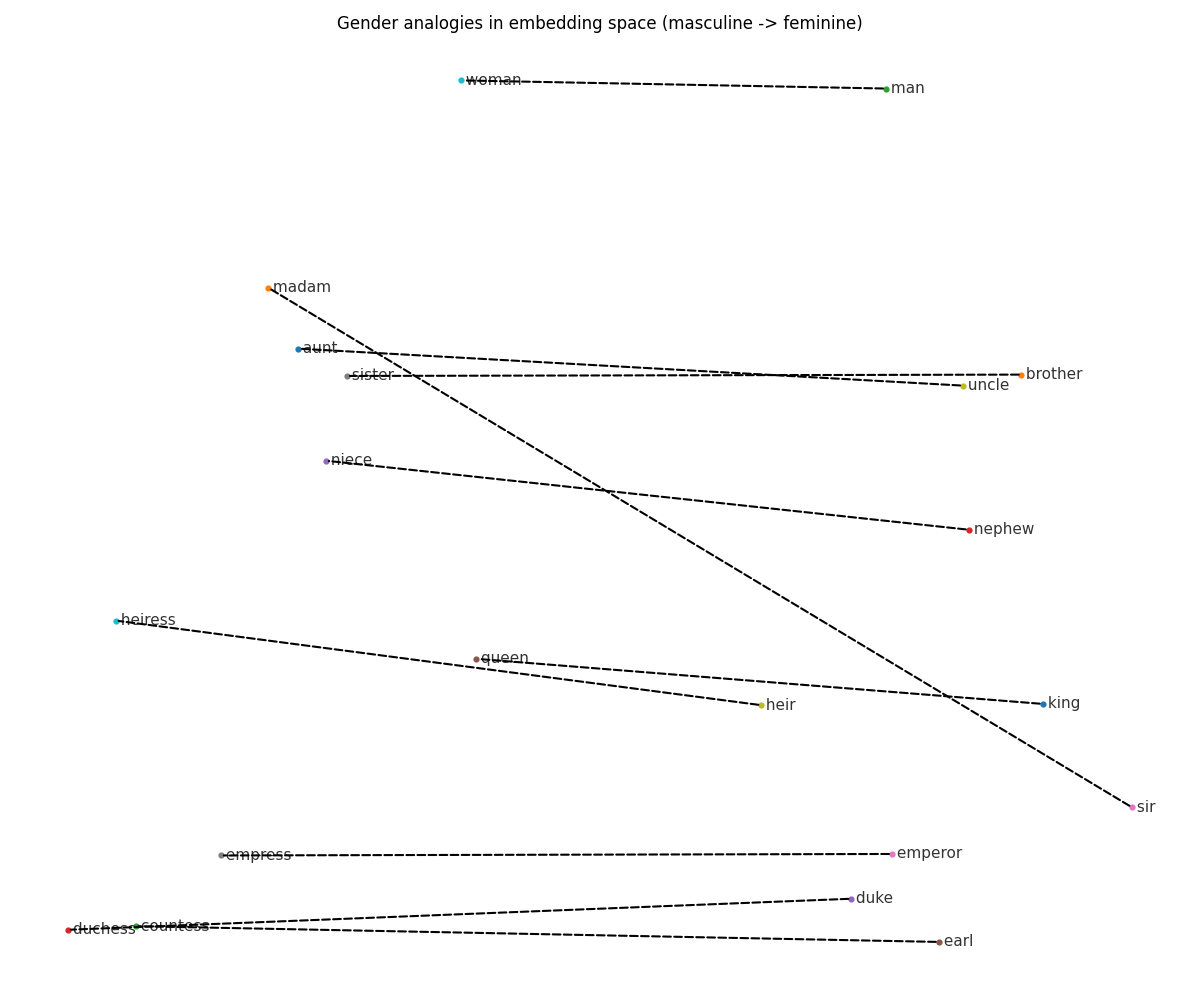

  1. Try to replicate figure 5.9(a) on p. 18 from SLP3 ch. 5. Do this using a PCA projection of the relevant embeddings. Import PCA using: from sklearn.decomposition import PCA. Set n_components=2, random_state=2025 when initializing the PCA class. For your convenience, here is a list of pair relevant words:
pairs = [
    ("brother", "sister"),
    ("nephew", "niece"),
    ("uncle", "aunt"),
    ("man", "woman"),
    ("sir", "madam"),
    ("heir", "heiress"),
    ("king", "queen"),
    ("duke", "duchess"),
    ("earl", "countess"),
    ("emperor", "empress"),
]

You should get something that looks like:

Interpret the plot. Also try to do the following vector arithmetic

    king - man + woman

and see where you end up in the plot. Explain.

Exercise 2 - PyTorch

  1. We will use the cpu version of PyTorch. To install this using uv add the following to your pyproject.toml file:

    [[tool.uv.index]]
name = "pytorch-cpu"
url = "https://download.pytorch.org/whl/cpu"
explicit = true

[tool.uv.sources]
torch = [
  { index = "pytorch-cpu" },
]
torchvision = [
  { index = "pytorch-cpu" },
]

    After having done this run uv add torch torchvision in your shell.

  2. Go through the quickstart here with some modifications:

    1. Instead of using FashionMNIST use the MNIST dataset that we used last week; i.e. change datasets.FashionMNIST to datasets.MNIST in the tutorial.
    2. Instead of building the model shown in the quickstart, build the same model that we used last week now in PyTorch i.e. a two-layer neural network with:
      • a hidden layer of dimension 30
      • an output layer of dimension 10
      • a sigmoid activation function in the hidden layer
      Note that we don’t need the softmax in the output layer (as we did last week) when we use the CrossEntropyLoss function from PyTorch (as they do in the quickstart). Read the documentation link and explain to yourself why that is.
    3. Compare the score of your final model with the score of your model from last week.

Note: one thing to appreciate (and that is easier to appreciate after having gone through backpropagation last week) when using PyTorch and its automatic differentiation engine is that the computation of gradients of the loss function wrt. the model parameters and the parameter update is done with just two lines of code:

 loss.backward()  # compute gradients
 optimizer.step()  # update parameters
 optimizer.zero_grad()  # reset gradients

Very neat indeed, although easy to not fully appreciate if you haven’t done the backpropagation calculations before.

Anoter note: there are no tests for this exercise.
