Exercise Class 5

Author

Jonas Skjold Raaschou-Pedersen

Published

October 2, 2025

This week we start from this repository.

Last week we played around with one instance of a pre-trained transformer, the GPT-2 model. What truly set transformers apart from earlier architectures is the attention mechanism. We postponed discussing it then, but now it’s time to dive in. To appreciate its impact, just look at the citation count of the 2017 paper “Attention is all you need”. That work, and the architecture it introduced, arguably ignited the current era of generative AI.

Exercise 1 - Visualizing Attention

The goal of this exercise is to plot the attention matrices (defined in Equation 1) of the GPT-2 model using the circuitsvis library.

  1. Add circuitsvis as a project dependency using uv.

  2. Load the GPT-2 model from last week

    from transformers import GPT2LMHeadModel, GPT2Tokenizer

tokenizer = GPT2Tokenizer.from_pretrained("gpt2")
model = GPT2LMHeadModel.from_pretrained("gpt2", output_attentions=True)

  3. Tokenize the sentence The chicken did not cross the road because it was too tired. using the tokenizer. Before doing so, prepend the bos_token token to the sentence (this can be found as tokenizer.bos_token).

  4. Pass the tokens through the model as done last week. Set output_attentions=True to get access to the attention matrices of each layer of the model. Store the output in a variable called outputs. You should be able to see the attention matrices of layer \(0\) by inspecting: outputs.attentions[0].

  5. Get the tokens as a list of str values using tokenizer.batch_decode. Set clean_up_tokenization_spaces=False.

    Note: you might want to squeeze the input tensor to get a list of str tokens.

  6. Import the attention_heads plotting function:

    from circuitsvis.attention import attention_heads

    Then plot all the attention matrices (\(12\) in total) of the first layer (index \(0\)), the ones in outputs.attentions[0], using the attention_heads function. You should pass the list of tokens transformed to string values and the tensor of attention matrices. The input tensor of attention matrices to the function should be of dimension (12, n, n) where n is the number of input tokens; hence, you should squeeze outputs.attentions[0].

    The resulting output should be:

Interpret the output. Get guidance from Equation 1 and the book.

Note: if you do this exercise in a notebook you should be able to see the figure directly. If you do it in a script and want to save the plot (it is a HTML file) then you can use the following snippet:

html = attention_heads(_)  # Placeholder should be your code
with open("output/layer0.html", "w") as f:
    f.write(str(html))

Open this file using e.g. your browser.

  1. Do the same but for the last, i.e. \(12\)th, layer. You should get output similar to:

    interpret the matrices and compare them to the ones for the first layer in the previous exercise.

  2. Use the snippet below to draw \(20\) random tokens.

    torch.manual_seed(2025)
seq_len = 20
random_tokens = torch.randint(low=0, high=100, size=(1, seq_len))

    Construct a tensor of random_tokens repeated (a (1, 40)-dimensional tensor). Prepend tokenizer.bos_token_id to this repeated tensor resulting in a (1, 41)-dimensional tensor. Denote this tensor by tokens.

    Note: the sequence of tokens should equal:

    [N', 'Y', '"', 'D', '"', 'O', '/', 'C', 'c', 'A', ']',
 'l', '(', 'Y', 'a', 'o', '=', '^', 'c', 'O', 'N', 'Y',
 '"', 'D', '"']

  3. Pass the tensor tokens through the model; use the same approach as in 4. Plot the attention matrices of layer \(6\). You should get output similar to:

    Try to interpret the attention matrices Head 1 and Head 5 of the first layer. E.g. entry \((30, 11)\) in the attention matrix of Head 1; the destination token is a and source token is o (destination = query; source = key). Why does token a attend this much to token o?

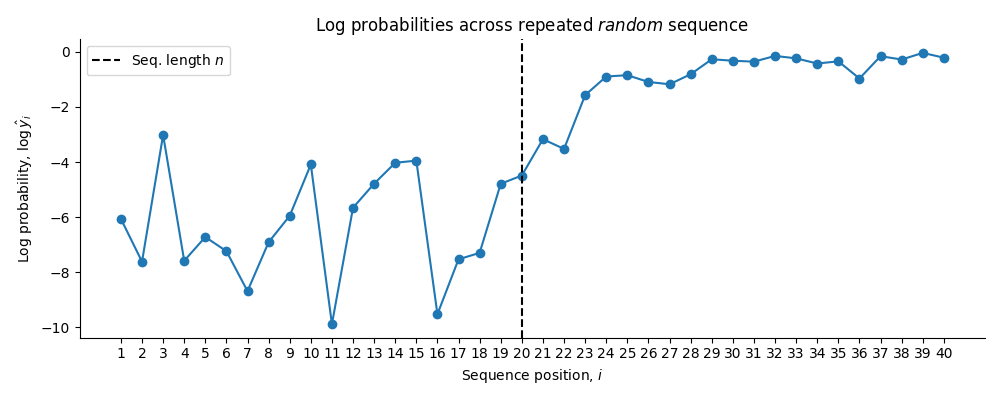

  4. Get the output logits from the forward pass of the previous exercise. Apply log_softmax to the logits. Then for each token \(i\) extract the log probability of the correct next token in the sequence. Use the method .detach().numpy() to convert it into a numpy array. Compute the average log probability on the first and second half of the sequence. Finally, plot all the log probabilities using matplotlib. You should get a plot similar to:

    and loss on the two halves equal to:

    Performance on the first half: -6.289
Performance on the second half: -0.843

    Interpret the output.

    Note: we just passed a repeated sequence of random tokens into the model and somehow the loss (the loss is the negative of the log probabilities) is much smaller on the second half. The model recognizes that the sequence is repeated and learns, in-context, that it should predict the token following the current token in the previous repetition of the sequence. This is an emergent ability of the model. If you are interested in more of this curious behaviour see e.g. this paper. The exercises was inspired by the Arena Transformer Interpretability course.

Exercise 2 - Computing Attention

The goal of the following exercise is to compute the attention matrices for the first layer of GPT-2 for a given input sentence.

From last lecture, recall that the core components of the multi-head attention mechanism are the key, query, and value matrices. In what follows we focus on a single head; the multi-head case simply repeats the same procedure for each head.

The input is a matrix \(X \in \mathbb{R}^{n \times d}\) consisting of \(n\) tokens (e.g. a tokenized sentence). For the first layer it equals the embedded tokens transformed by a layer norm, for later layers it equals the output of the previous layers. The query, key and value matrices are computed using the weight matrices \[\begin{align} W^{K}, W^{Q} \in \mathbb{R}^{d \times d_{k}}, \quad W^{V} \in \mathbb{R}^{d \times d_{v}} \end{align}\] where \(d_{k} = d_{v} = 64\). The query, key and value matrices are computed as: \[\begin{align*} Q = XW^{Q} + b^{Q}, \quad K = XW^{K} + b^{K}, \quad V = XW^{V} + b^{V} \end{align*}\] where \(Q, K, V \in \mathbb{R}^{n \times 64}\) and \(b^{Q}, b^{K}, b^{V} \in \mathbb{R}^{64 \times 1}\).

The self-attention step for an entire sequence of \(n\) tokens for one head equals: \[ \begin{align*} A := \mathrm{softmax}\left( \mathrm{mask}\left(\frac{Q K^{T}}{\sqrt{d_{k}}}\right) \right) \in [0, 1]^{n \times n}, \end{align*} \tag{1}\] \[ \begin{align} \texttt{head} & = AV \in \mathbb{R}^{n \times d_{v}} \\ O & = \texttt{head}W^{O} \in \mathbb{R}^{n \times d}, \quad W^{O} \in \mathbb{R}^{d_{v} \times d}, \end{align} \tag{2}\] where the \(\mathrm{softmax}\) is applied row-wise, hence the rows sum to \(1\). The quantity \(A\) in Equation 1 is the attention matrix of the given head. This is the matrix we plotted in the previous exercise. The quantity \(O\) in Equation 2 is the attention output of the given head. The masking is done as follows: \[\begin{align*} \mathrm{mask}\left(\frac{Q K^{T}}{\sqrt{d_{k}}}\right) := \frac{Q K^{T}}{\sqrt{d_{k}}} + M, \end{align*}\] where the “causal mask” \(M\) is a lower-triangular matrix \(M \in \{0, -\infty\}^{n \times n}\): \[\begin{align*} M = \begin{bmatrix} 0 & -\infty & -\infty & \cdots & -\infty \\ 0 & 0 & -\infty & \cdots & -\infty \\ 0 & 0 & 0 & \cdots & -\infty \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ 0 & 0 & 0 & \cdots & 0 \\ \end{bmatrix}. \end{align*}\] The \(\mathrm{softmax}\) will set the \(-\infty\) entries to \(0\).

What is the intuition for Equation 1? A given row, \(A_{i, \cdot}\), gives the attention scores between token \(i\) and all tokens \(j \leq i\) (the tokens coming before token \(i\)). Because of the autoregressive structure, token \(i\) is not allowed to attend to a token \(k > i\) (the ones following \(i\) in the sentence are masked out). The matrix in Equation 1 computes this for all allowed pairs of tokens. The matrices \(Q\) and \(K\) consist of \(n\) row vectors stacked on top: \[\begin{align*} Q = \begin{bmatrix} q_{1}^{T} \\ \vdots \\ q_{n}^{T} \\ \end{bmatrix}, \quad K = \begin{bmatrix} k_{1}^{T} \\ \vdots \\ k_{n}^{T} \\ \end{bmatrix}. \end{align*}\] Transposing \(K\) we get a \(d \times n\) matrix \[\begin{align*} K^{T} = (k_{1}, \ldots, k_{n})^{T} \in \mathbb{R}^{d \times n} \end{align*}\] The product \(QK^{T}\) can then be written as: \[\begin{align} \label{eq:qkt} QK^{T} = \begin{bmatrix} q_{1}^{T} \\ \vdots \\ q_{n}^{T} \\ \end{bmatrix} (k_{1}, \ldots, k_{n}) = \begin{bmatrix} q_{1}^{T} k_{1} & \cdots & q_{1}^{T} k_{n} \\ \vdots & \ddots & \vdots \\ q_{n}^{T} k_{1} & \cdots & q_{n}^{T} k_{n} \\ \end{bmatrix} \in \mathbb{R}^{n \times n} \end{align}\] where each entry \((i, j)\) equals \(q_{i}^{T} k_{j}\); a dot product between the \(i\)th query vector and the \(j\)th key vector. This is the similarity score between token \(i\) and \(j\); scaling this and applying a row-wise softmax gives the attention score between token \(i\) and \(j\) (how much does token \(i\) attend to token \(j\)).

  1. Use the GPT-2 model and tokenizer as in the previous exercise to tokenize:

    sentence = """The chicken did not cross the road because it was too tired."""
text = tokenizer.bos_token + sentence

    Get the tensor of tokens.

  2. To arrive at the matrix \(X\) for the attention computation, run the following snippet:

    E = model.transformer.wte(tokens)
P = model.transformer.wpe(t.arange(tokens.shape[1]))
T = E + P
h0 = model.transformer.h[0]
X = h0.ln_1(T)
O, A = h0.attn(X)

    Relate the code to the model architecture.

    We will now compute A and O manually.

  3. The way GPT-2 computes attention is done in a specific way. The following snippet extracts the matrices into a familiar format. To get weight matrices that looks like the one in the book and the equations above run the following snippet:

    cfg = model.config
d_head = cfg.n_embd // cfg.n_head  # correspond to d_k, d_v in the equations
n_embd = cfg.n_embd  # correspond to d, the embedding dimension

W = h0.attn.c_attn.weight
bias = h0.attn.c_attn.bias
W_Q, W_K, W_V = W.split(n_embd, dim=1)
b_Q, b_K, b_V = bias.split(n_embd, dim=0)
W_O = h0.attn.c_proj.weight
b_O = h0.attn.c_proj.bias
W_Qs = W_Q.split(d_head, dim=1)
b_Qs = b_Q.split(d_head, dim=0)
W_Ks = W_K.split(d_head, dim=1)
b_Ks = b_K.split(d_head, dim=0)
W_Vs = W_V.split(d_head, dim=1)
b_Vs = b_V.split(d_head, dim=0)

    The W_Qs, b_Qs, W_Ks, b_Ks, W_Vs, b_Vs variables contain the weight and bias matrices for each head of the first layer; they are tuples of tensors. You will use these to compute the attention matrices in the next exercise.

    Note: if you are uncertain about where the matrices fit in the big picture try inspecting the model variable; for instance by printing it.

  4. Compute the attention matrix for the \(i\)th head (of the 12 total heads) for the first layer using the matrices above and the X tensor from 2. The mask should be constructed using torch.triu and the tensor-method masked_fill(mask, float("-inf")) where QKT is the product of the query and key matrices for the \(i\)th head. Remember to divide by \(\sqrt{d_{k}}\) and apply the softmax row-wise.

    You can assert that you get the correct output by comparing it to the matrix A:

    assert torch.allclose(attn_weights, A[0][i])

  5. Compute the \(12\) heads and stack them on top, denote this tensor by aheads. Then compute O using the \(12\) heads and W_O, b_O. Check your solution with:

    assert torch.allclose(aheads @ W_O + b_O, O, atol=1e-6)

Appendix

Things introduced at the exercise class:
